Exploring HTTP/3: The Next Generation Internet Transport Protocol

Key Feature Explanations

Multiplexing

• HTTP/2: Application-layer multiplexing, but TCP layer still suffers from HOL blocking.
• HTTP/3: Native support at the transport layer, with each stream transmitted independently.

0-RTT Connection Establishment Once the client has cached the server configuration, subsequent connections can send application data in the first packet without waiting for the handshake to complete. This significantly improves performance for short-lived connections (like API requests).

Connection Migration QUIC uses a Connection ID instead of a 4-tuple (IP + Port) to identify connections, allowing mobile devices to switch networks without re-establishing the connection.

QPACK vs HPACK QPACK is an improvement over HPACK, allowing for out-of-order decoding of headers, thus avoiding HOL blocking caused by header compression in HTTP/2.

Applicable Scenarios

Recommended Usage

• Mobile applications/websites (frequent network switching)
• Services in poor network environments (e.g., overseas users)
• Applications requiring high real-time performance (online meetings, gaming)
• API-intensive applications (many short-lived connections)

Optional Usage

• Intranet environments (stable network quality)
• Static resource CDNs (already fast, limited improvement)

Not Recommended

• Enterprise intranets (firewalls might block UDP)
• Environments requiring strict auditing (some auditing tools do not support QUIC)

Client Support Status

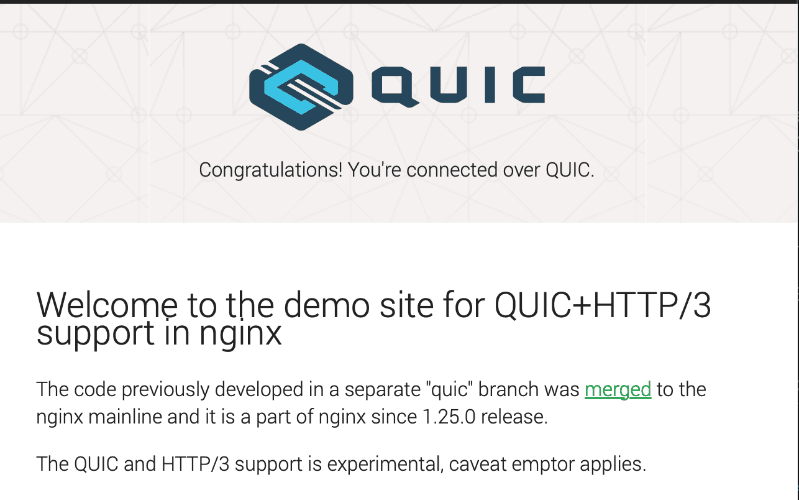

Quick Test: Visit quic.nginx.org. If the QUIC icon turns color, your browser supports HTTP/3.

Server Support Status

Configuration Guide

Nginx Configuration

Prerequisites

1. Nginx version >= 1.25.0
2. Compiled with --with-http_v3_module (official binaries include this)
3. Valid SSL certificate
4. Firewall/Security group must allow UDP port 443

Configuration Example

nginx
server {
    listen 443 ssl;
    listen [::]:443 ssl;

    # Enable HTTP/3
    # reuseport only needs to be added in one server block
    listen 443 quic reuseport;
    listen [::]:443 quic reuseport;

    server_name example.com;

    # SSL Certificate Configuration
    ssl_certificate /path/to/cert.pem;
    ssl_certificate_key /path/to/key.pem;

    # Recommended SSL Configuration
    ssl_protocols TLSv1.2 TLSv1.3;
    ssl_ciphers HIGH:!aNULL:!MD5;
    ssl_prefer_server_ciphers on;

    # Enable 0-RTT (Optional, beware of replay attack risks)
    ssl_early_data on;

    location / {
        # Inform the client about HTTP/3 support
        add_header Alt-Svc 'h3=":443"; ma=86400';

        # Other configurations...
    }
}

Other server block configurations (reuseport is not needed)

nginx
server {
    listen 443 ssl;
    listen [::]:443 ssl;
    listen 443 quic;  # reuseport is not needed
    listen [::]:443 quic;

    # Other configurations as above...
}

Apply Configuration

bash
# Test configuration
nginx -t

# Reload configuration
nginx -s reload

Verify UDP Port

bash
# Check if UDP 443 is listening
ss -ulnp | grep 443
# Or
netstat -ulnp | grep 443

Caddy Configuration

Caddy enables HTTP/3 by default, no extra configuration is needed:

caddyfile
example.com {
    # Caddy automatically enables HTTP/3
    reverse_proxy localhost:8080
}

To disable it:

caddyfile
example.com {
    protocols h1 h2  # Only enable HTTP/1.1 and HTTP/2
}

Firewall Configuration

iptables

bash
# Allow UDP 443
iptables -A INPUT -p udp --dport 443 -j ACCEPT

firewalld

bash
firewall-cmd --permanent --add-port=443/udp
firewall-cmd --reload

Cloud Provider Security Groups Ensure security group rules allow incoming UDP port 443 traffic.

Docker Environment

If Nginx is running in Docker, you must map the UDP port:

yaml
# docker-compose.yml
services:
  nginx:
    image: nginx:latest
    ports:
      - '443:443/tcp'
      - '443:443/udp' # UDP must be explicitly mapped

Verification and Testing

1. Online Testing Tools

• http3check.net
• http3.wcode.net

2. Chrome Developer Tools

1. Open DevTools (F12)
2. Switch to the Network tab
3. Right-click on the table headers and enable the Protocol column
4. Refresh the page and check if the Protocol column shows h3

3. curl Command Line Test

bash
# Requires curl 7.66.0+ compiled with HTTP/3 support
curl --http3 -I https://www.kevnu.com

# View detailed information
curl --http3 -v https://www.kevnu.com

4. Browser Internal Pages

Chrome/Edge Visit chrome://net-internals/#quic to view QUIC connection details.

Firefox Visit about:networking#http3 to view HTTP/3 connection details.

Troubleshooting Common Issues

Configured but Not Taking Effect

Checklist

1. Confirm Nginx Version and Compilation Options

bash
nginx -V 2>&1 | grep http_v3_module

2. Check UDP Port Listening

bash
ss -ulnp | grep 443

3. Check Firewall Rules

bash
# iptables
iptables -L -n | grep 443

# firewalld
firewall-cmd --list-ports

4. Check Alt-Svc Response Header

bash
curl -I https://your-domain.com | grep -i alt-svc

5. Check Nginx Error Logs

bash
tail -f /var/log/nginx/error.log

Browser Does Not Use HTTP/3

Possible Reasons

1. Proxy Tool Interference

   • Most proxy tools do not support QUIC/HTTP/3.
   • Direct mode might also fail.
   • Solution: Use TUN mode, or temporarily disable the proxy.

2. Enterprise Network/Firewall

   • Some enterprise networks block UDP traffic.
   • Solution: Contact the network administrator to open UDP 443.

3. Carrier QoS

   • Some carriers throttle UDP traffic.
   • Solution: Cannot be resolved; the browser will automatically downgrade.

4. Browser Cache

   • Clear browser cache and Alt-Svc cache.
   • Chrome: chrome://net-internals/#sockets -> Flush socket pools.

No Performance Improvement

1. Network Environment is Too Good: In environments with low latency and low packet loss, the advantages of HTTP/3 are less apparent.
2. Primarily Static Resources: Protocol differences have less impact in large file download scenarios.
3. CDN Not Enabled: If using a CDN, ensure the CDN also supports HTTP/3.

Performance Monitoring

Nginx Log Configuration

nginx
log_format quic '$remote_addr - $remote_user [$time_local] '
                '"$request" $status $body_bytes_sent '
                '"$http_referer" "$http_user_agent" '
                '$quic $http3';

access_log /var/log/nginx/access.log quic;

Statistics on HTTP/3 Usage Rate

bash
# Calculate the percentage of HTTP/3 requests
awk '{print $NF}' /var/log/nginx/access.log | sort | uniq -c

Real-World Usage Experience

Issues Encountered

Issue 1: Some users cannot access

• Reason: Enterprise firewalls block UDP.
• Solution: Maintain HTTP/2 fallback; no extra handling required.

Issue 2: CDN does not support it

• Reason: The CDN service provider used has not enabled HTTP/3.
• Solution: Switch to Cloudflare or another supported CDN.

Issue 3: Increased CPU Usage

• Reason: The QUIC protocol involves higher encryption computation overhead.
• Impact: CPU usage increases by about 5-10%.
• Solution: For high-traffic sites, assess hardware resources.

Precautions and Best Practices

Security

1. 0-RTT Replay Attack Risk

   • 0-RTT data can potentially be replayed.
   • Do not perform non-idempotent operations in 0-RTT.
   • Disable ssl_early_data if not needed.

2. UDP Amplification Attacks

   • QUIC has built-in defenses against amplification attacks.
   • Ensure you are using the latest version of the server software.

Performance Optimization

1. Adjusting Alt-Svc Cache Time

nginx
# ma=86400 means cache for 24 hours
add_header Alt-Svc 'h3=":443"; ma=86400';

2. Enabling BBR Congestion Control

bash
# Linux kernel 4.9+
echo "net.core.default_qdisc=fq" >> /etc/sysctl.conf
echo "net.ipv4.tcp_congestion_control=bbr" >> /etc/sysctl.conf
sysctl -p

3. Adjusting UDP Buffer Sizes

bash
echo "net.core.rmem_max=2500000" >> /etc/sysctl.conf
echo "net.core.wmem_max=2500000" >> /etc/sysctl.conf
sysctl -p

Using with CDN

Cloudflare

• Enable HTTP/3 in the SSL/TLS settings.
• Automatically handles fallback and compatibility.

Other CDNs

• Confirm if the CDN supports HTTP/3.
• Some CDNs require manual enabling.

Future Outlook

Adoption Trend

• Browser Side: Fully supported by mainstream browsers.
• Server Side: Mainstream servers like Nginx and Caddy have stable support.
• CDN: Gradually being enabled by major CDN providers.
• Projection: Expected to become the mainstream protocol by 2025.

Is Migration Worthwhile?

Recommended Migration

• High proportion of mobile users.
• Overseas users.
• High performance requirements.
• Using a CDN that supports HTTP/3.

Can Wait and See

• Pure intranet applications.
• User base with restricted network environments.
• Strained server resources.

Migration Cost: Low (only configuration changes required, no code changes) Risk: Low (automatic fallback, does not affect unsupported clients) Benefit: Medium to High (depending on user network environment)

References

1. HTTP/3: The Past, Present, and Future - Cloudflare
2. HTTP/3 - Wikipedia
3. QUIC Protocol Specification - IETF RFC 9000
4. Nginx HTTP/3 Official Documentation
